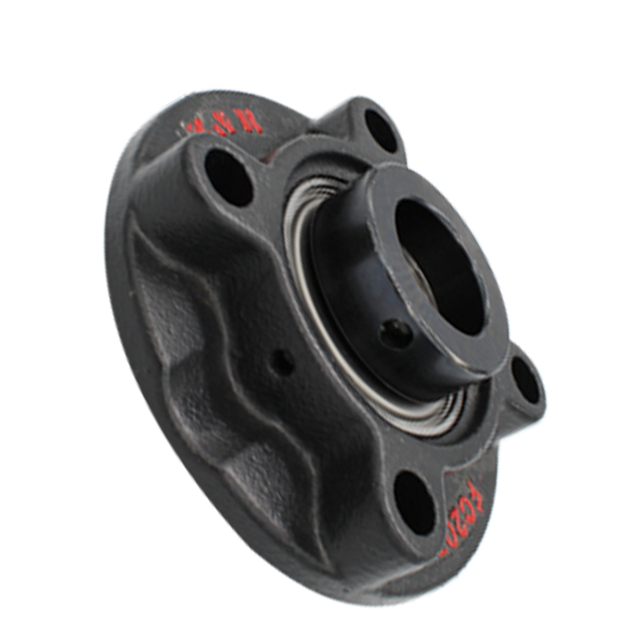

轴径 | 连座轴承 型号 | 外形尺寸(mm) | 螺纹 规格 | 轴承 型号 | 座 型号 | 紧定套 型号 | 重量 (kg) | ||||||||||||
d | L | P | A2 | A1 | A | j | K | N | J | f | S1 | E | |||||||
(min.) | (mm) | ||||||||||||||||||
3/4 |
20 | UKFC205+HE2305 205+H2305 | 115 | 90 | 10 | 21 | 27 | 6 | 7 | 12 | 63,6 | 70 | 18,5 | 28,5 | M10 | UK205 | FC205 | HE2305 H2305 | 0,98 |
7/8 15/16
1 |
25 | UKFC206+HS2306 206+HA2306 206+H2306 206+HE2306 | 125 | 100 | 10 | 23 | 31 | 8 | 8 | 12 | 70,7 | 80 | 20,5 | 30,5 | M10 | UK206 | FC206 | HS2306 HA2306 H2306 HE2306 | 1,2 |
1-1/8
1-3/16 |
30 | UKFC207+HS2307 207+H2307 207+HA2307 | 135 | 110 | 11 | 26 | 34 | 8 | 9 | 14 | 77,8 | 90 | 22,5 | 33,5 | M12 | UK207 | FC207 | HS2307 H2307 HA2307 | 1,7 |
1-1/4 1-3/8 |
35 | UKFC208+HE2308 208+HS2308 208+H2308 | 145 | 120 | 11 | 26 | 36 | 10 | 9 | 14 | 84,8 | 100 | 24,5 | 35,5 | M12 | UK208 | FC208 | HE2308 HS2308 H2308 | 2,0 |
1-7/16 1-1/2 |
40 | UKFC209+HA2309 209+HE2309 209+H2309 | 160 | 132 | 10 | 26 | 38 | 12 | 10 | 16 | 93,3 | 105 | 26 | 36 | M14 | UK209 | FC209 | HA2309 HE2309 H2309 | 2,7 |
1-5/8 1-11/16 1-3/4 |
45 | UKFC210+HS2310 210+HA2310 210+HE2310 210+H2310 | 165 | 138 | 10 | 28 | 40 | 12 | 14 | 16 | 97,6 | 110 | 27,5 | 37,5 | M14 | UK210 | FC210 | HS2310 HA2310 HE2310 H2310 | 3,0 |
1-7/8 1-15/16
2 |
50 | UKFC211+HS2311 211+HA2311 211+H2311 211+HE2311 | 185 | 150 | 13 | 30 | 42 | 12 | 13 | 19 | 106,1 | 125 | 28,5 | 41,5 | M16 | UK211 | FC211 | HS2311 HA2311 H2311 HE2311 | 4,2 |
2-1/8 |
55 | UKFC212+HS2312 212+H2312 | 195 | 160 | 17 | 36 | 48 | 12 | 15 | 19 | 113,1 | 135 | 31 | 48 | M16 | UK212 | FC212 | HS2312 H2312 | 4,9 |
2-3/16 2-1/4
2-3/8 |
60 | UKFC213+HA2313 213+HE2313 213+H2313 213+HS2313 | 205 | 170 | 16 | 35 | 49 | 14 | 15 | 19 | 120,2 | 145 | 32 | 48 | M16 | UK213 | FC213 | HA2313 HE2313 H2313 HS2313 | 5,6 |
2-7/16 2-1/2 |
65 | UKFC215+HA2315 215+HE2315 215+H2315 | 220 | 184 | 18 | 39 | 55 | 16 | 17 | 19 | 130,1 | 160 | 35,5 | 53,5 | M16 | UK215 | FC215 | HA2315 HE2315 H2315 | 7,5 |
2-11/16 2-3/4 |
70 | UKFC216+HA2316 216+HE2316 216+H2316 | 240 | 200 | 18 | 42 | 58 | 16 | 18 | 23 | 141,4 | 170 | 39 | 57 | M20 | UK216 | FC216 | HA2316 HE2316 H2316 | 8,9 |
2-15/16
3 |
75 | UKFC217+HA2317 217+H2317 217+HE2317 | 250 | 208 | 18 | 45 | 63 | 18 | 20 | 23 | 147,1 | 180 | 40 | 58 | M20 | UK217 | FC217 | HA2317 H2317 HE2317 | 10,4 |
80 | UKFC218+H2318 | 265 | 220 | 22 | 50 | 68 | 18 | 20 | 23 | 155,5 | 190 | 42 | 64 | M20 | UK218 | FC218 | H2318 | 13,3 | |
