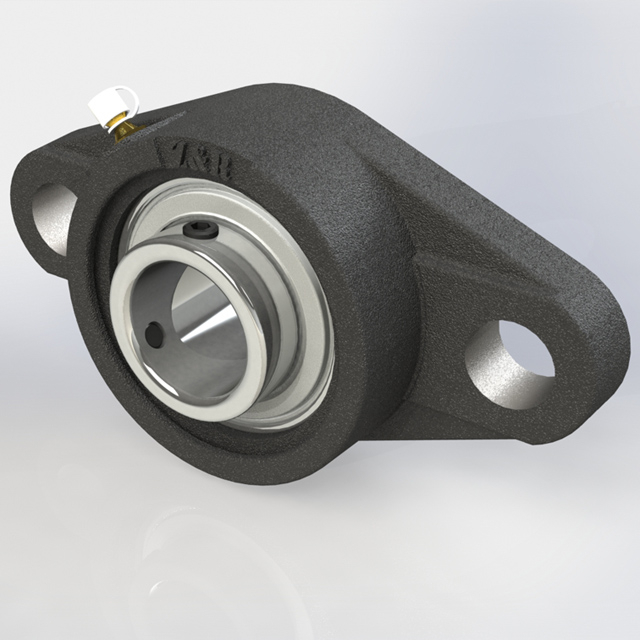

轴径 | 连座轴承 型号 | 外形尺寸(mm) | 螺栓 规格 | 轴承型号 | 座型号 | 重量 (kg) | |||||||||
d | H | J | L | A2 | A1 | A | E | N | S | ||||||
(min.) | (mm) | ||||||||||||||
7/8 15/16
1 |
25 | UCFL305-14 305-15 305 305-16 | 150 | 113 | 80 | 16 | 13 | 29 | 39 | 19 | 15 | M16 | UC305-14 305-15 305 305-16 | FL305 | 1,1 |
1- 1/8
1-3/16 |
30 | UCFL306-18 306 306-19 | 180 | 134 | 90 | 18 | 15 | 32 | 44 | 23 | 17 | M20 | UC306-18 306 306-19 | FL306 | 1,5 |
1- 1/4 1-5/16 1- 3/8 |
35 | UCFL307-20 307-21 307-22 307 | 185 | 141 | 100 | 20 | 16 | 36 | 49 | 23 | 19 | M20 | UC307-20 307-21 307-22 307 | FL307 | 1,8 |
1-1/2 1-9/16 |
40 | UCFL308-24 308-25 308 | 200 | 158 | 112 | 23 | 17 | 40 | 56 | 23 | 19 | M20 | UC308-24 308-25 308 | FL308 | 2,5 |
1-5/8 1-11/16 1-3/4 |
45 | UCFL309-26 309-27 309-28 309 | 230 | 177 | 125 | 25 | 18 | 44 | 60 | 25 | 22 | M22 | UC309-26 309-27 309-28 309 | FL309 | 3,4 |
1-7/8 1-15/16 |
50 | UCFL310-30 310-31 310 | 240 | 187 | 140 | 28 | 19 | 48 | 67 | 25 | 22 | M22 | UC310-30 310-31 310 | FL310 | 4,4 |
2 2-1/8
2-3/16 |
55 | UCFL311-32 311-34 311 311-35 | 250 | 198 | 150 | 30 | 20 | 52 | 71 | 25 | 25 | M22 | UC311-32 311-34 311 311-35 | FL311 | 5,1 |
2-1/4
2-3/8 2-7/16 |
60 | UCFL312-36 312 312-38 312-39 | 270 | 212 | 160 | 33 | 22 | 56 | 78 | 31 | 26 | M27 | UC312-36 312 312-38 312-39 | FL312 | 6,1 |
2-1/2 |
65 | UCFL313-40 313 | 295 | 244 | 175 | 33 | 25 | 58 | 78 | 31 | 30 | M27 | UC313-40 313 | FL313 | 7,8 |
2-3/4 |
70 | UCFL314-44 314 | 315 | 250 | 185 | 36 | 28 | 61 | 83 | 35 | 31 | M30 | UC314-44 314 | FL314 | 9,8 |
3 | 75 | UCFL315 315-48 | 320 | 260 | 195 | 39 | 30 | 66 | 89 | 35 | 32 | M33 | UC315 315-48 | FL315 | 11,3 |
80 | UCFL316 | 355 | 285 | 210 | 38 | 32 | 68 | 90 | 38 | 34 | M33 | UC316 | FL316 | 14,3 | |
